HTK magnetic mine remover


Scope of application:

         It is suitable for removing iron from magnetic ore conveyor belts such as ore, sinter, pellets and lump ore. HTK magnetic mine iron removal system relies on its unique magnetic circuit design to separate the selected materials several times, so that the ferromagnetic impurities can be removed from the magnetic mineral materials in the least amount of minerals, so as to protect the subsequent crushing equipment. .

Technical features:

◆The magnetic circuit adopts computer simulation design, the magnetic field design is unique, the magnetic permeability is large, and the magnetic field is strong.

◆Cooperate with the metal detector to form an automatic detection of the iron removal system without leakage.

◆ Intermittent excitation, low energy consumption, stable and reliable performance.

◆Multi-level repeated magnetic separation is adopted in the sorting area to ensure that the amount of ore is less when removing iron.

◆Automatic iron unloading, simple maintenance, drum waist drum structure, automatic deviation correction function, special full-sealed bearing seat, suitable for occasions with large dust on site, can achieve long-term trouble-free operation.

◆Good product matching, complete functions, manual and centralized control functions, can meet the requirements of various occasions.

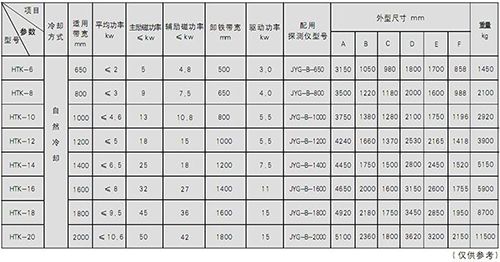

Technical Parameters:

HTK magnetic mine remover 2019-7-15 This article is read 2331 second
