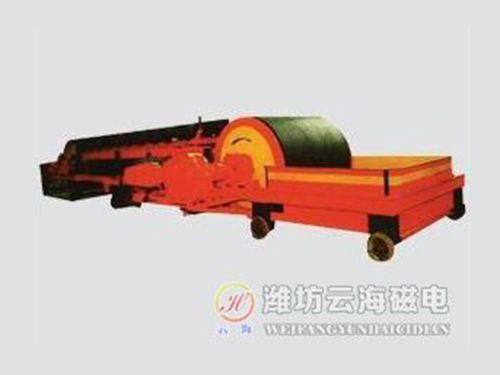

CTDG series permanent magnet dry bulk magnetic separator


product description:

        This machine is a new type of high-efficiency energy-saving beneficiation equipment. In addition to the existing stereotyped products, it can also be designed and manufactured into different magnetic induction strengths according to the specific requirements of users, and is suitable for magnetic separators (magnetic pulleys) with different belt specifications. The products are widely used in metallurgy and other industries, which can meet the needs of large, medium and small mines; for the pre-selection of various sections after the crushing of the magnetic separation plant, the waste rock is removed, the geological grade is restored, and energy consumption can be saved. Increase the processing capacity of the plant; use in the stope, recover magnetite ore from waste rock, improve the utilization of ore resources; recover metal iron from steel slag; use it for sorting useful metals and improve the environment.

Technical features:

◆The magnetic system is made of neodymium iron boron material with strong magnetic force, large magnetic permeability, high remanence and high coercivity, ensuring high magnetic field strength on the roller surface. The magnetic system is wrapped with stainless steel to ensure that the magnet will never fall off.

◆The cylinder is made of high-quality stainless steel material, which can improve the wear resistance of the drum and improve the service life of the drum. It is suitable for all kinds of harsh environments.

◆ Non-magnetic stainless steel material is used between the drum main shaft and the magnetic system to ensure no leakage magnetic conduction to the main shaft, thus ensuring smooth running of the bearing.

◆The roller can be used as a driving roller or as a roller.

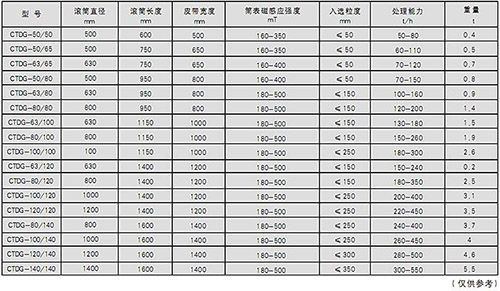

Technical Parameters:



CTDG series permanent magnet dry bulk magnetic separator 2019-7-12 This article is read 2140 second
